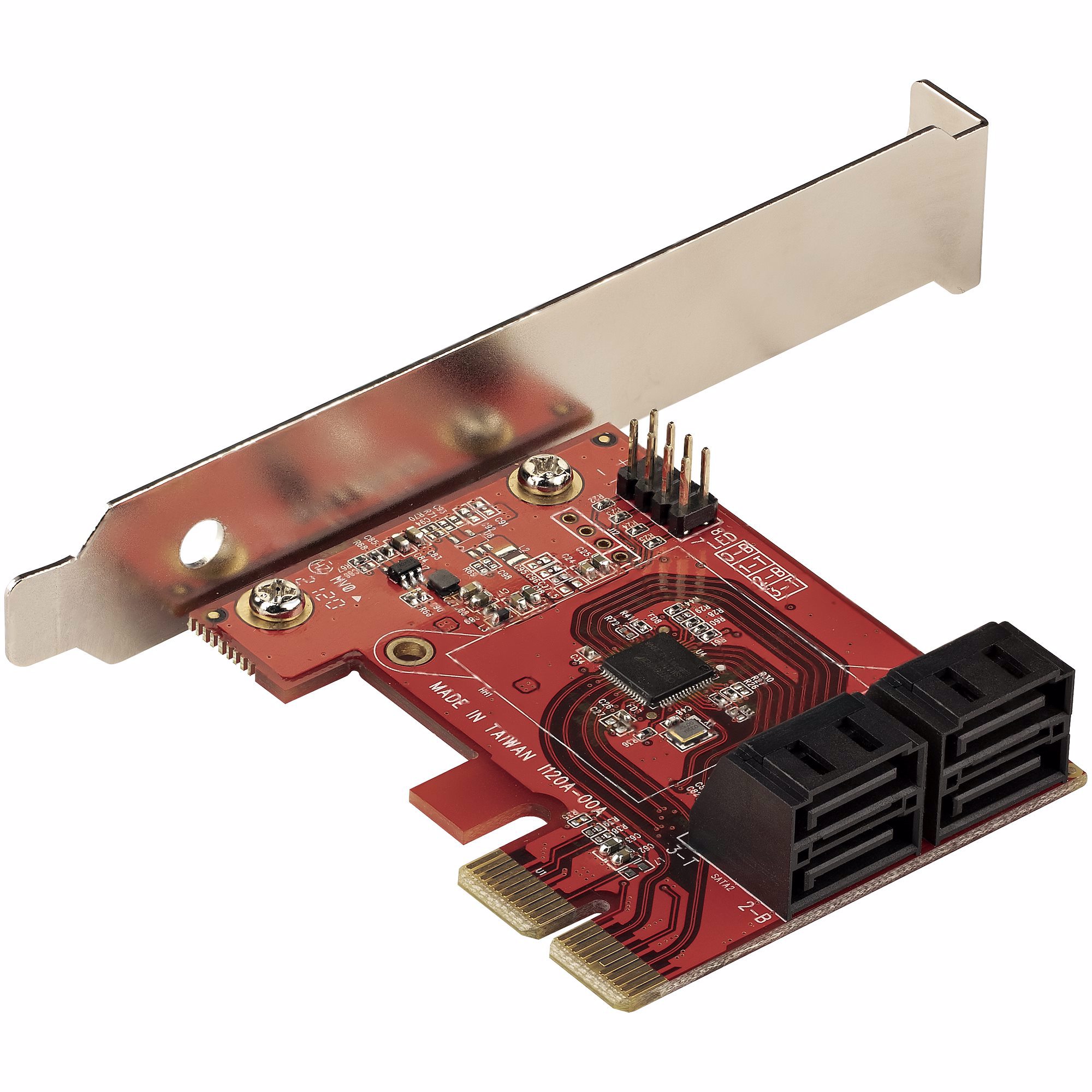

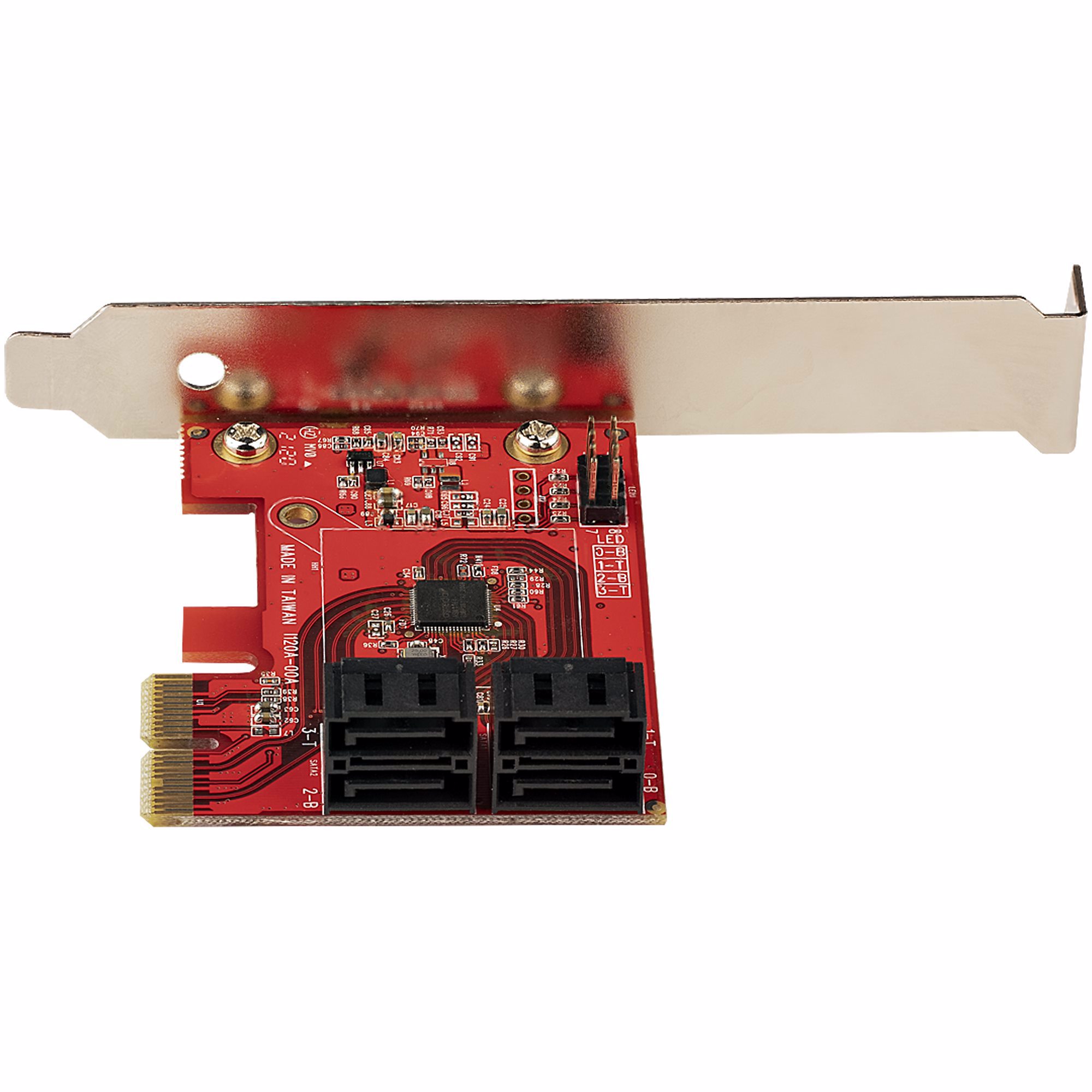

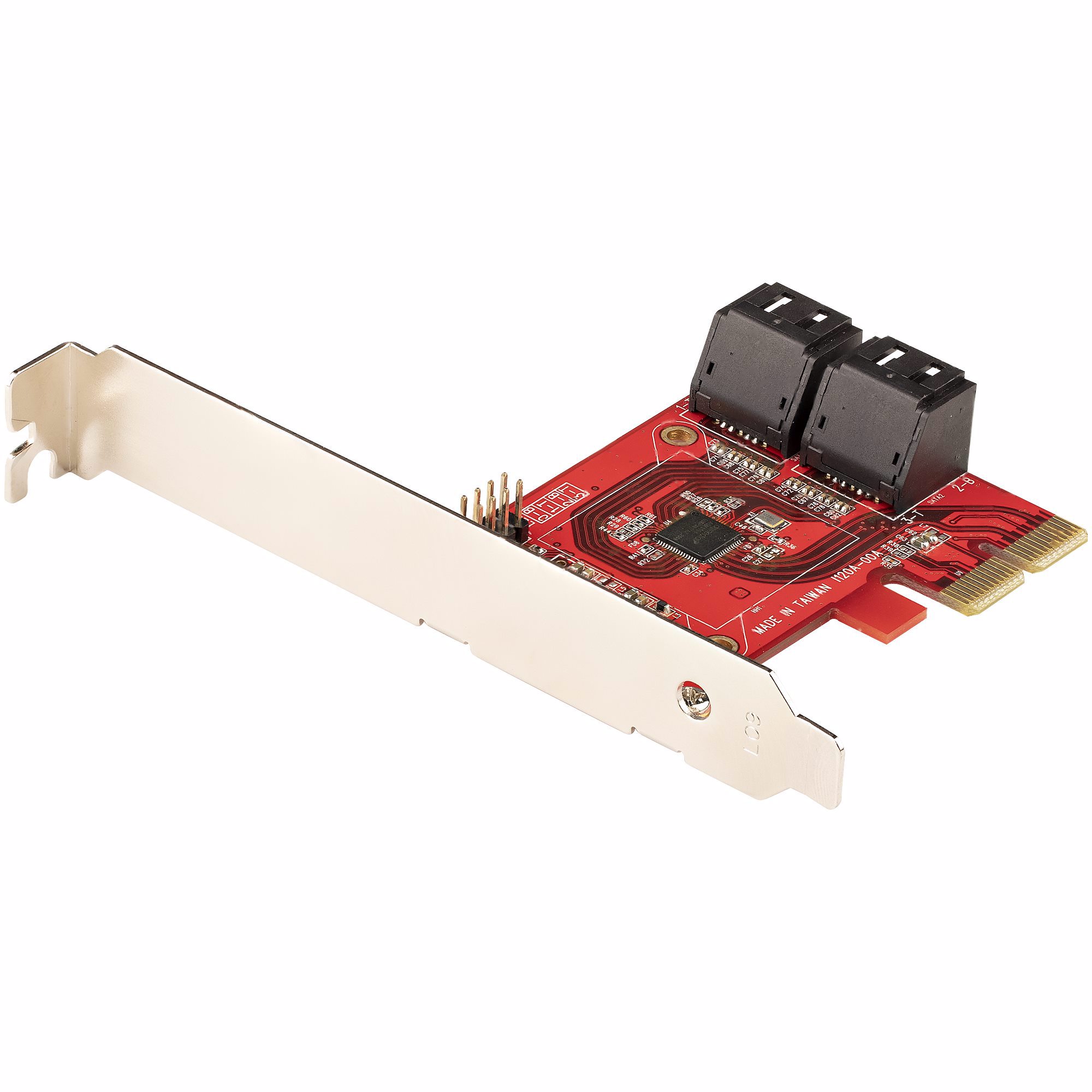

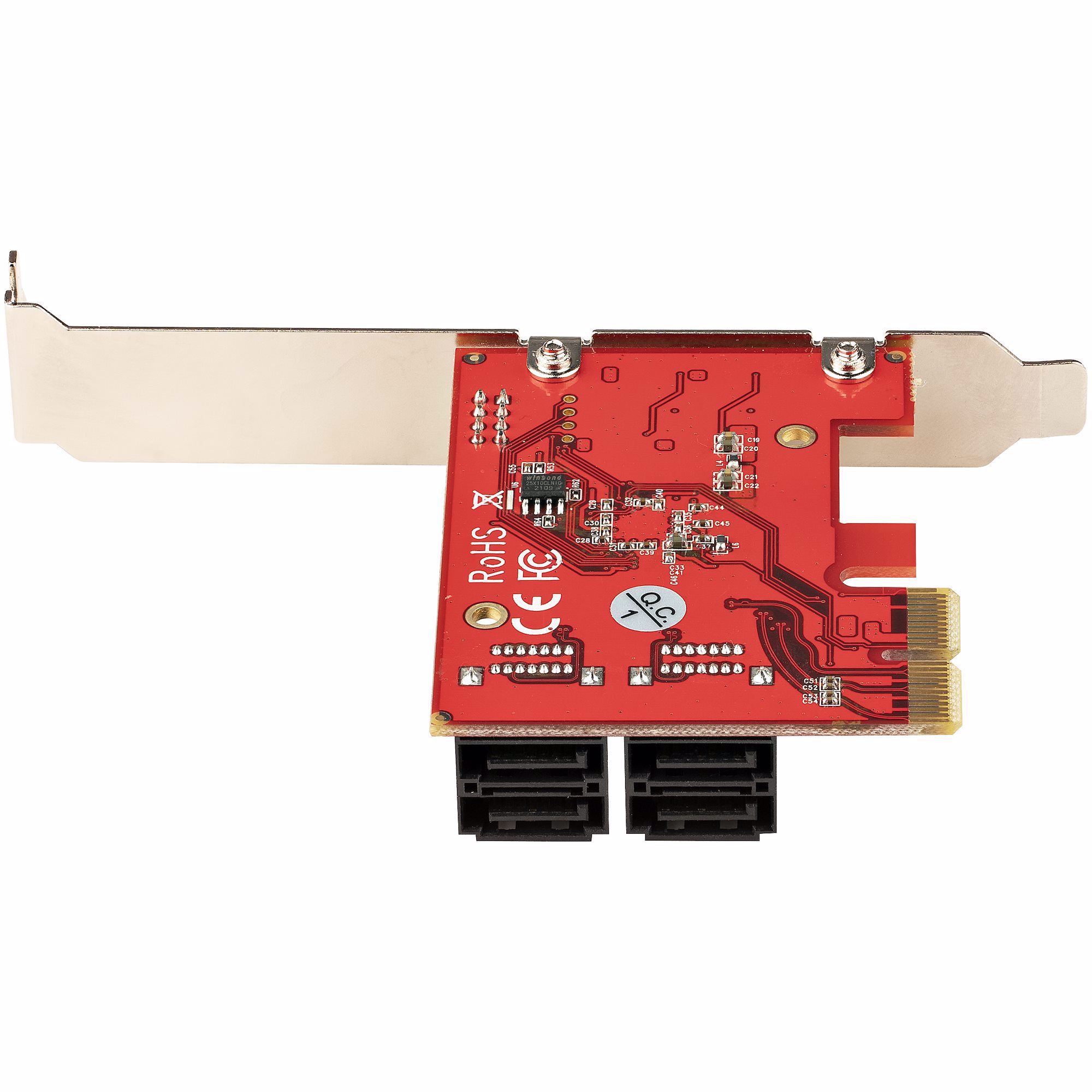

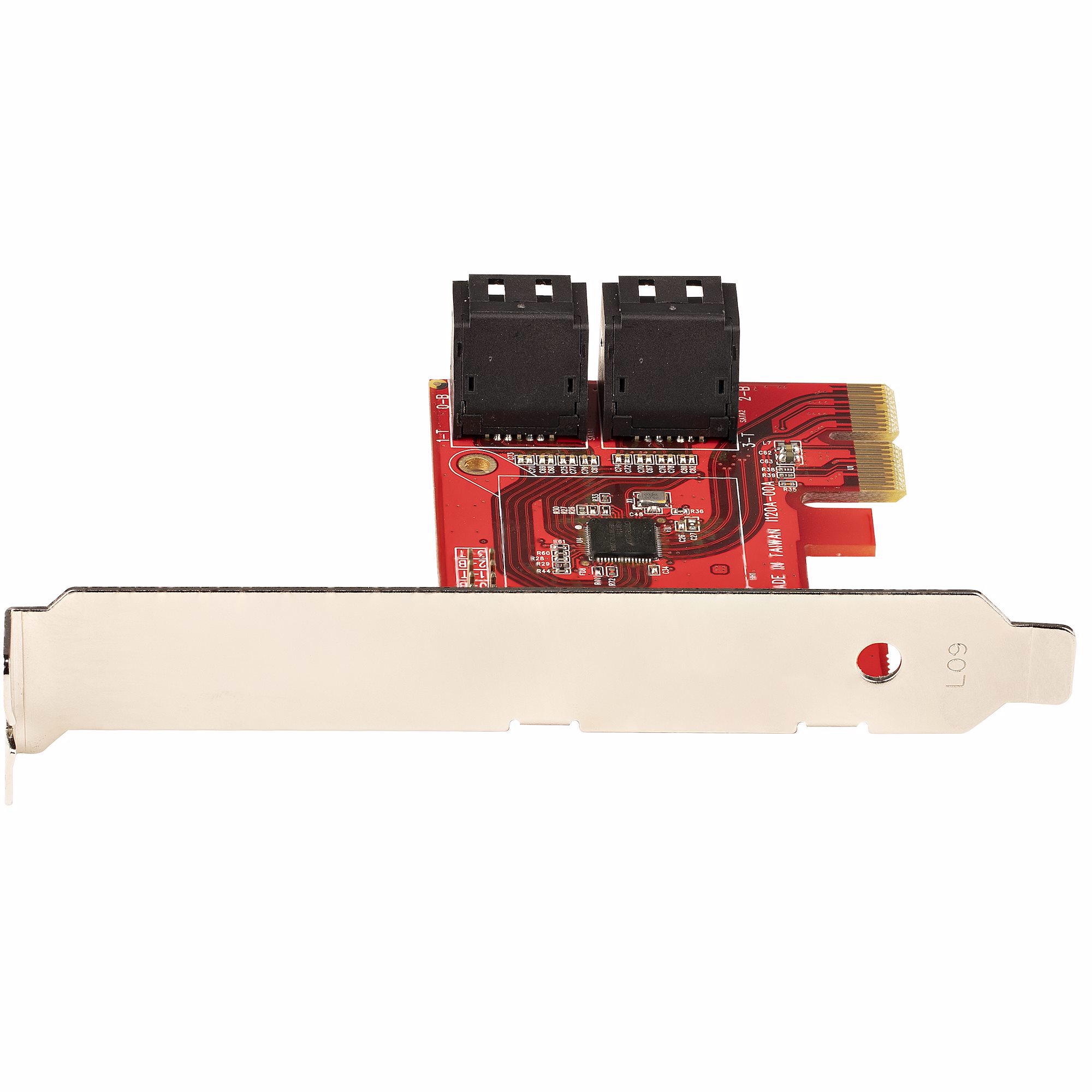

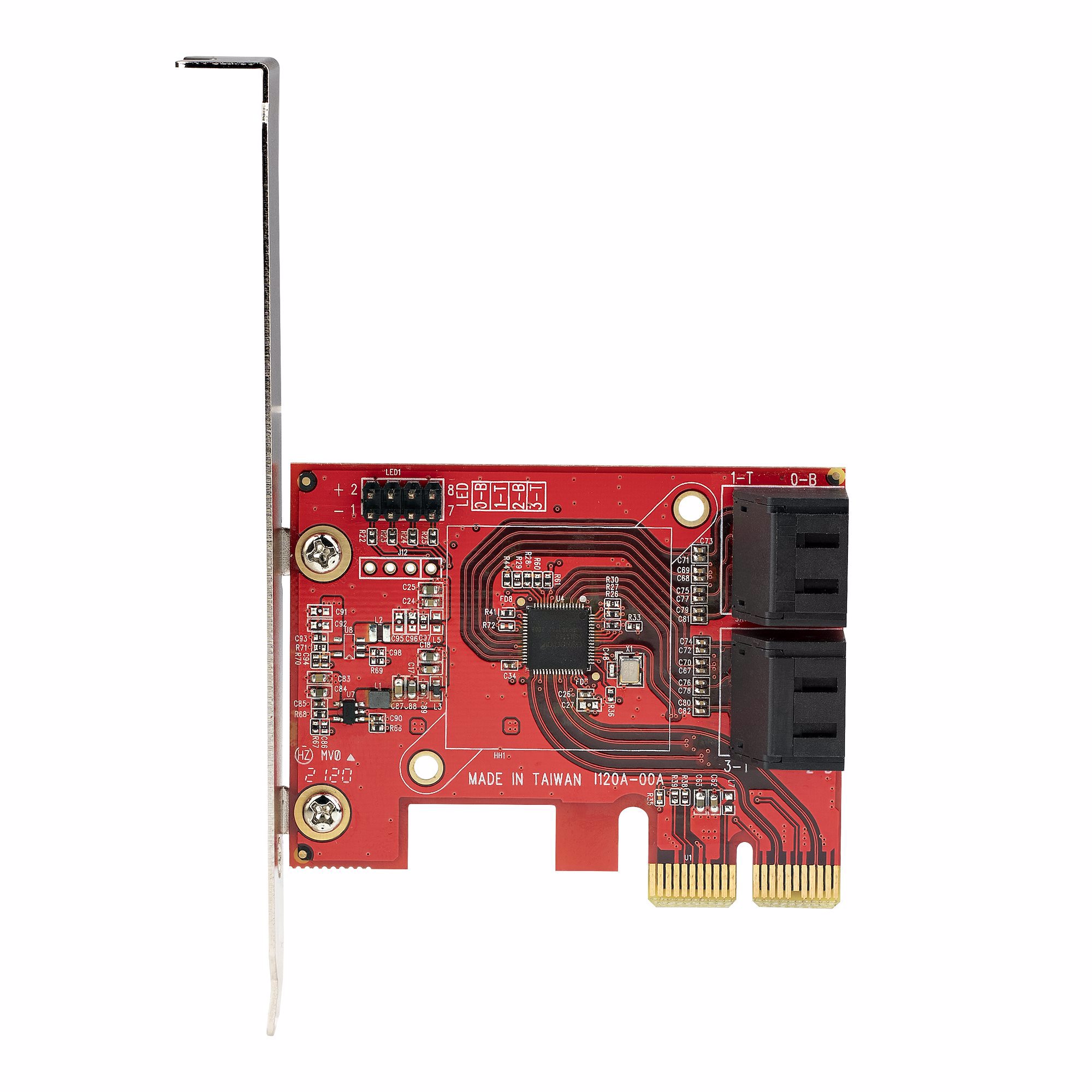

StarTech.com 4P6G-PCIE-SATA-CARD interface-kort/adapter Intern

SKU: 999904877
EAN: 0065030893879

StarTech.com 4P6G-PCIE-SATA-CARD, PCIe, SATA, PCIe 3.0, Rød, ASMedia - ASM1164, 6 Gbit/sek.
Mere info
649,00 DKK Ex. moms: 519,20 DKK På lager

Produktbeskrivelse

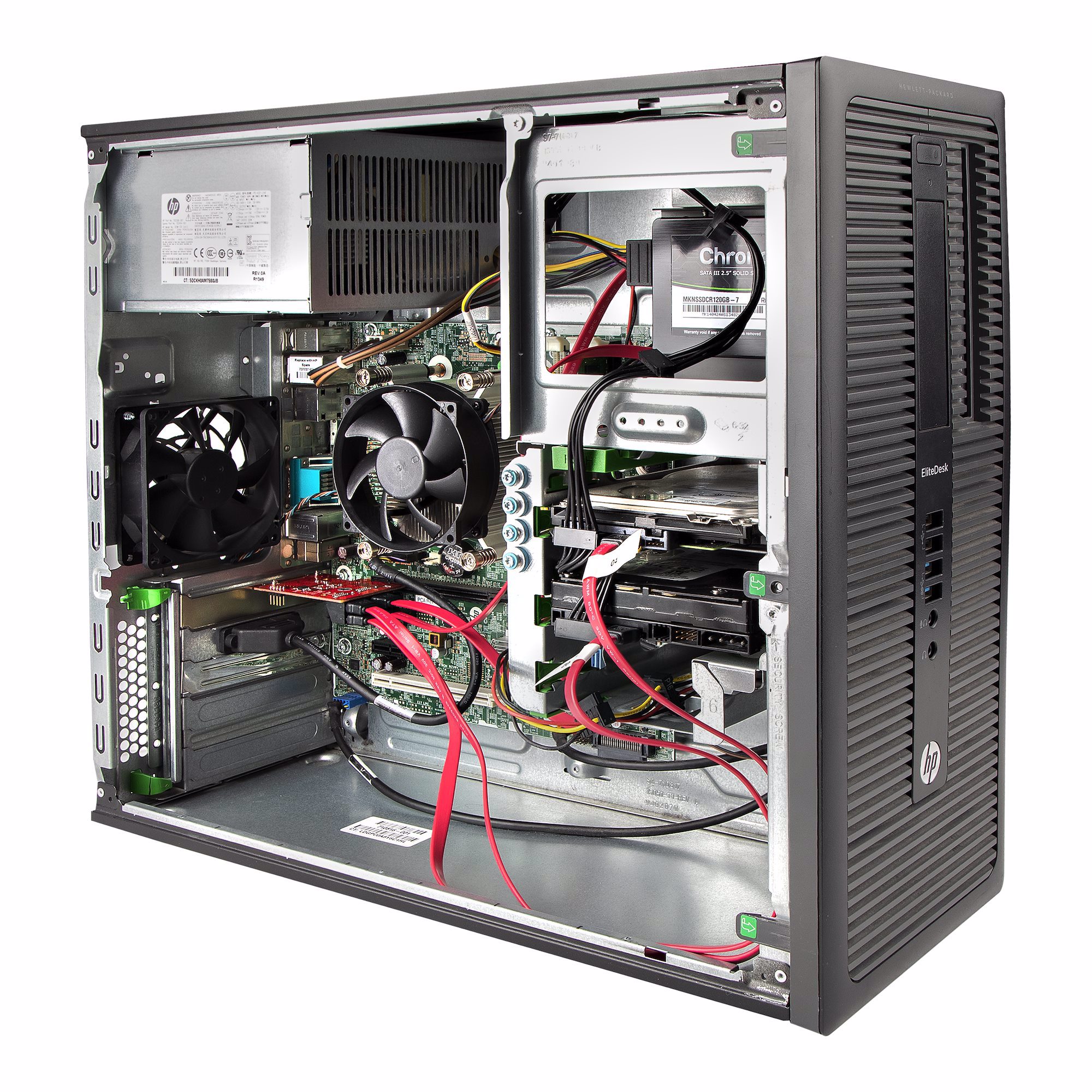

SATA III (6Gbps) | PCI Express 3.0 | PCIe x4 Slot | 4x SATA Connectors | 2-Year WarrantyThis 4-port SATA III (6Gbps) controller enables you to add four SATA 6Gbps Hard Drives (HDDs) or Solid State Drives (SSDs) to your computer system or server via an available PCIe x4 card slot. The card supports SATA III and PCI-Express 3.0 Specifications.ASM1164 to Deliver 4-Port SATA 6Gbps PerformanceFeaturing the ASM1164 controller, this SATA card enables the connection of four high-performance SATA 6Gbps drives with a combined total throughput of up to 16Gbps. The SATA drives are connected via four individual SATA ports located on the card (SATA cables sold separately).Wide CompatibilityThe controller card is widely supported across all popular operating system platforms including Windows (7, 8, 10), macOS (10.10 and above) and Linux (2.6.32 and above). The card also supports port multiplier, giving you the ability to connect multiple drives to a single SATA port (additional hardware required, sold separately).To further improve motherboard compatibility the card does not have a built-in RAID controller, but fully supports the use of software RAID. Plus, with support for PCIe 3.0 and SATA III Specifications this card ensures backward compatibility with previous generations (SATA I/II, PCIe 1/2) at lower performance.Hassle-Free InstallationThe SATA controller card features plug-and-play installation and can be installed in a full-profile or low-profile computer systems with the full-profile bracket preinstalled, and an interchangeable low-profile (half-height) bracket included. The card also supports storage software data management systems such as Storage Spaces (Microsoft) , RAID Assistant (MacOS) and mdraid/mdadm (Linux), for hassle-free setup, partitioning and software RAID array building.4P6G-PCIE-SATA-CARD is backed by a StarTech.com 2-year warranty and free lifetime 24/5 North American based, multi-lingual support.The StarTech.com Advantage

Specifikationer

Harmoniseret systemkode (HS) 84733020
Produktfarve Rød
Pakkevægt 115 g
Bredde 56 mm
Højde 16 mm
Vægt 75 g
Dybde 70 mm
Relativ luftfugtighed ved drift (H-H) 20 - 80%
Opbevaringstemperatur (T-T) -25 - 85 °C
Pakkebredde 142 mm
Pakkedybde 170 mm
Pakkehøjde 30 mm
Understøttede Windows-operativsystemer Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Understøttede Linux-operativsystemer Ja
Driftstemperatur (T-T) 0 - 85 °C
Intern Ja
Værtsgrænseflade PCIe
Hovedkassens bredde (udvendigt) 365 mm
Hovedkassens længde (udvendigt) 380 mm
Hovedkassen højde (udvendigt) 510 mm
Produkter pr. hovedkasse (udvendigt) 60 stk
Understøttede Mac-operativsystemer Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura

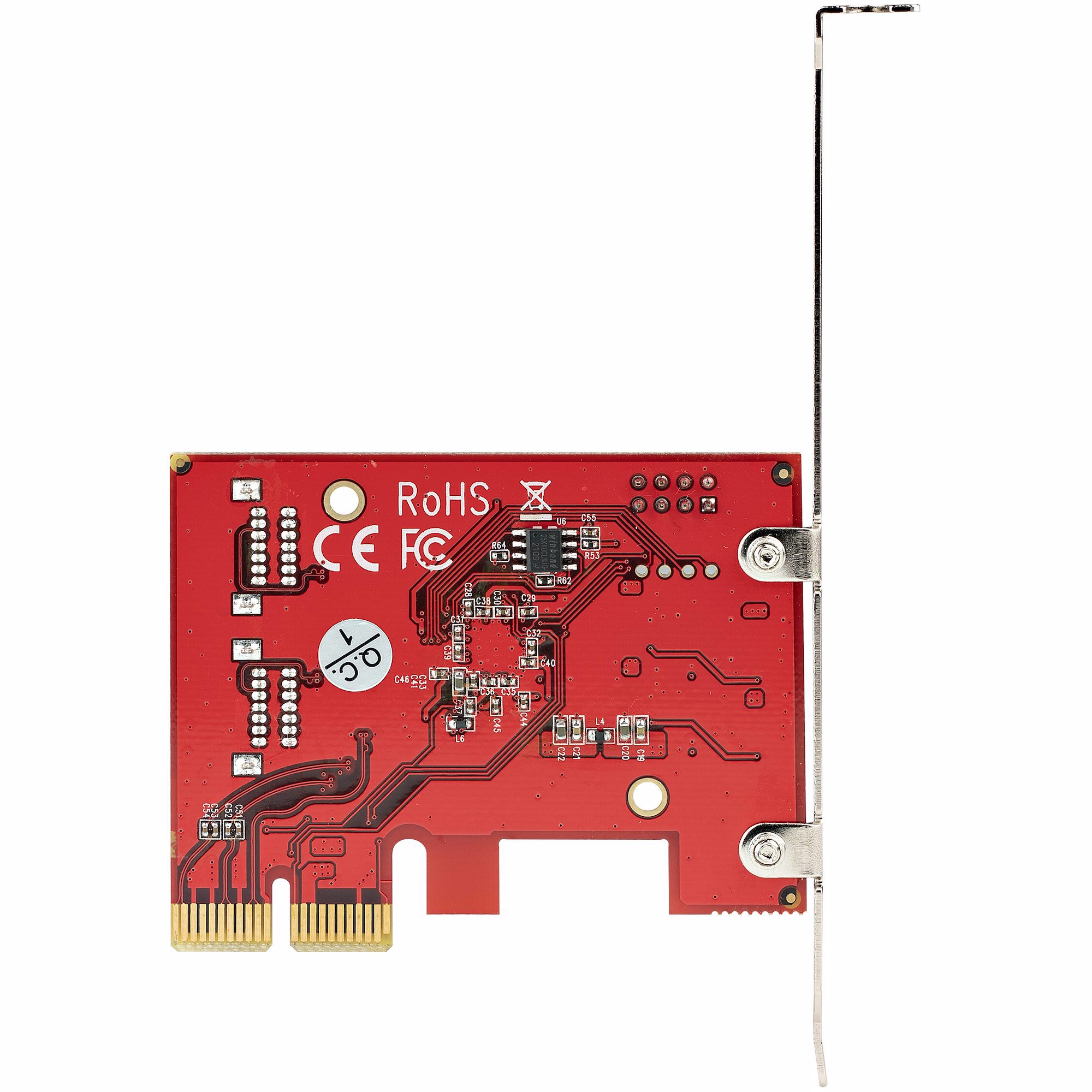

Bæredygtighedscertifikater CE, RoHS
Hurtig installationsvejledning Ja
Output-grænseflade SATA
Chipsæt ASMedia - ASM1164
Understøttede operativsystemer til servere Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Understøtter S.M.A.R.T. Ja
Understøttelse af TRIM Ja
Udvidelseskort standard PCIe 3.0
Dataoverførselshastighed (maks.) 6 Gbit/sek.
SATA revision 3.0

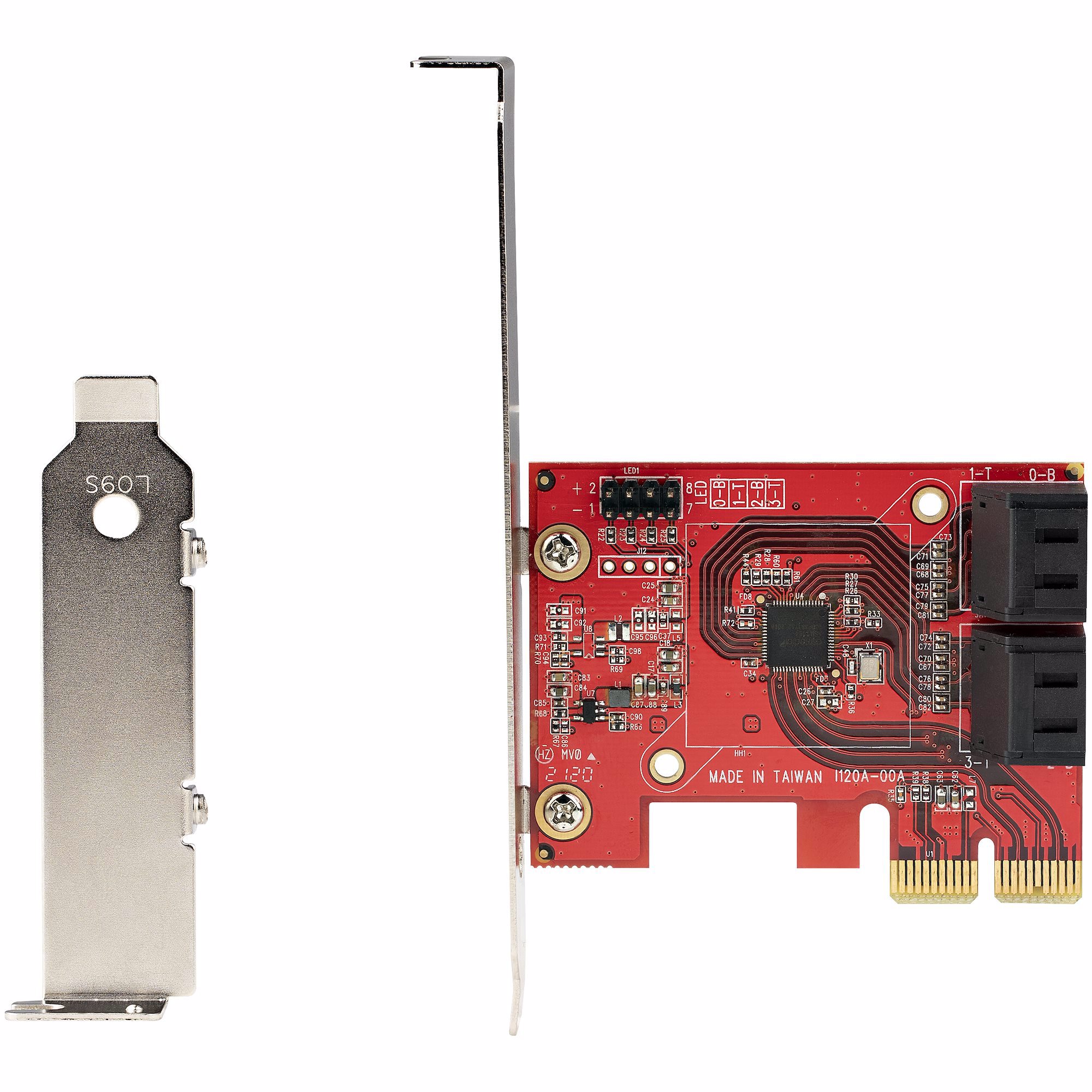

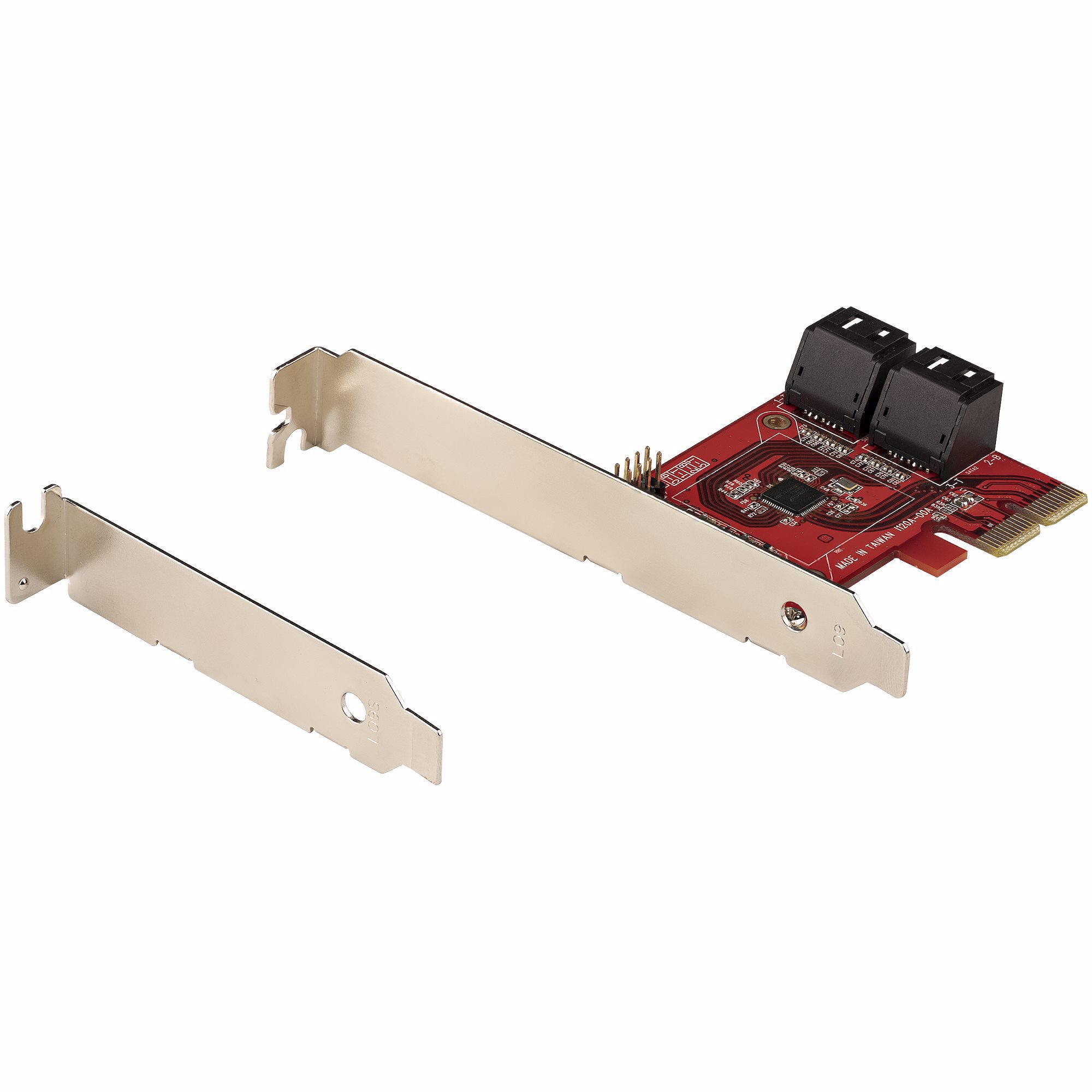

Monteringsbeslag inkluderet Ja
Antal interne SATA-porte 4
Port multiplikator Ja
