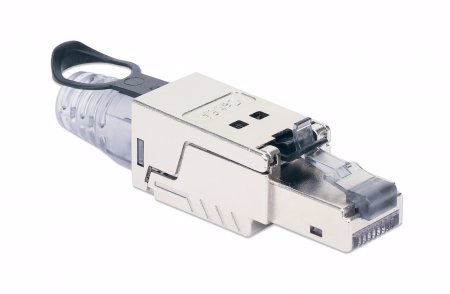

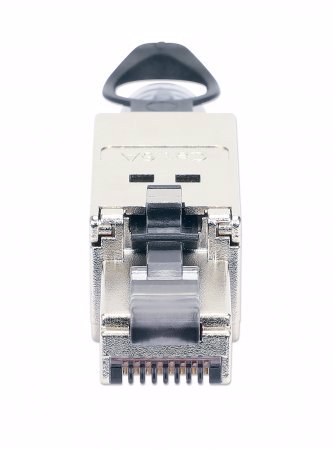

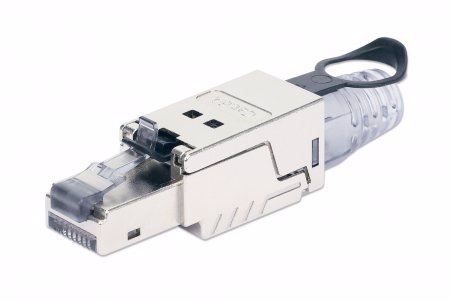

Intellinet 790796 kabelsamler RJ45 Rustfrit stål

SKU: 1000209581
EAN: 0766623790796

Intellinet 790796, RJ45, Rustfrit stål, Hanstik, Lige, Cat6a, U/FTP (STP)
Mere info
79,00 DKK Ex. moms: 63,20 DKK På lager

Produktbeskrivelse

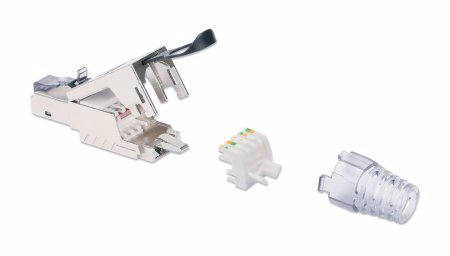

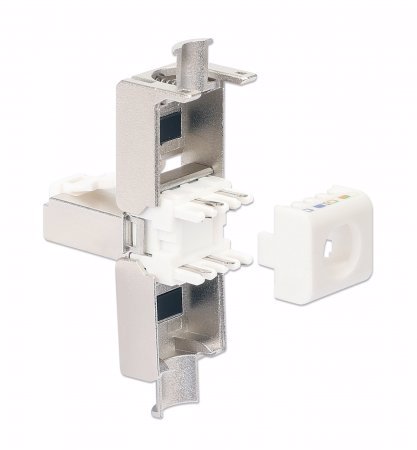

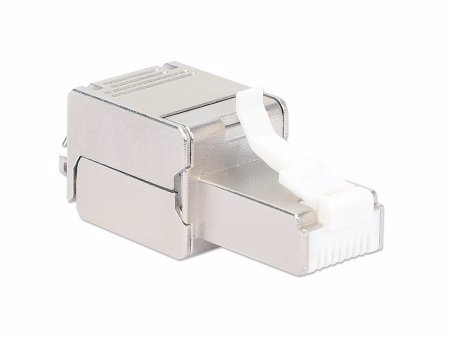

Field-installable Cat6a STP RJ45 Modular Plug for easy, fast and tool-free high-quality cable assembly

The Cat6a 10G Shielded Toolless RJ45 Modular Field Termination Plug from Intellinet Network Solutions is designed for time-saving, high-quality cable terminations, even when out in the field for such devices as security cameras, industrial electronics and more. Without any special tools, the cable can be assembled within two minutes. This plug is suitable for both stranded and solid conductor cables for high-performance network applications up to 10GBase-T with PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE. For maximum signal integrity, it is equipped with gold-plated contacts and 360° STP shielding.

Specifikationer

Stik RJ45
Produktfarve Rustfrit stål
Stik køn Hanstik
Forbindelsesformfaktor Lige
Standard for kabler Cat6a
Kabelafskærmning U/FTP (STP)
Stikforbindelse kontakter plettering Guld
Kontaktmodstand 20 mΩ
Strøm 1,5 A
Certificering CE RoHS FCC ISO/IEC 11801 IEC 60603-7-51 Cat5 (ANSI/TIA/EIA-568-D) Cat5e (TIA/EIA-568-D) Cat6 (ANSI/TIA-568-D) Cat6a (ANSI/TIA-568-D)
Vægt 20 g
Bredde 15 mm
Dybde 41 mm
Højde 18 mm
Driftstemperatur (T-T) -10 - 60 °C
Opbevaringstemperatur (T-T) -40 - 70 °C
