LevelOne NVR-0764 Netværk videooptager (NVR) Sort

SKU: 993849371
EAN: 4015867206416

LevelOne NVR-0764, 64 kanaler, 3840 x 2160 pixel, 720p, 1080p, 128 bruger(e), H.264, H.264+, H.265, MPEG4, Indbygget LINUX
Mere info
13.249,00 DKK Ex. moms: 10.599,20 DKK På lager

Produktbeskrivelse

The LevelOne NVR-0764 NVR enables live view, recording and playback for up to 64 IP network cameras at the same time, featuring up to 12-megapixel resolution and H.264/H.265 video compression. Operation is easy and intuitive via the web browser interface (IE), enabling remote monitoring and functionality.

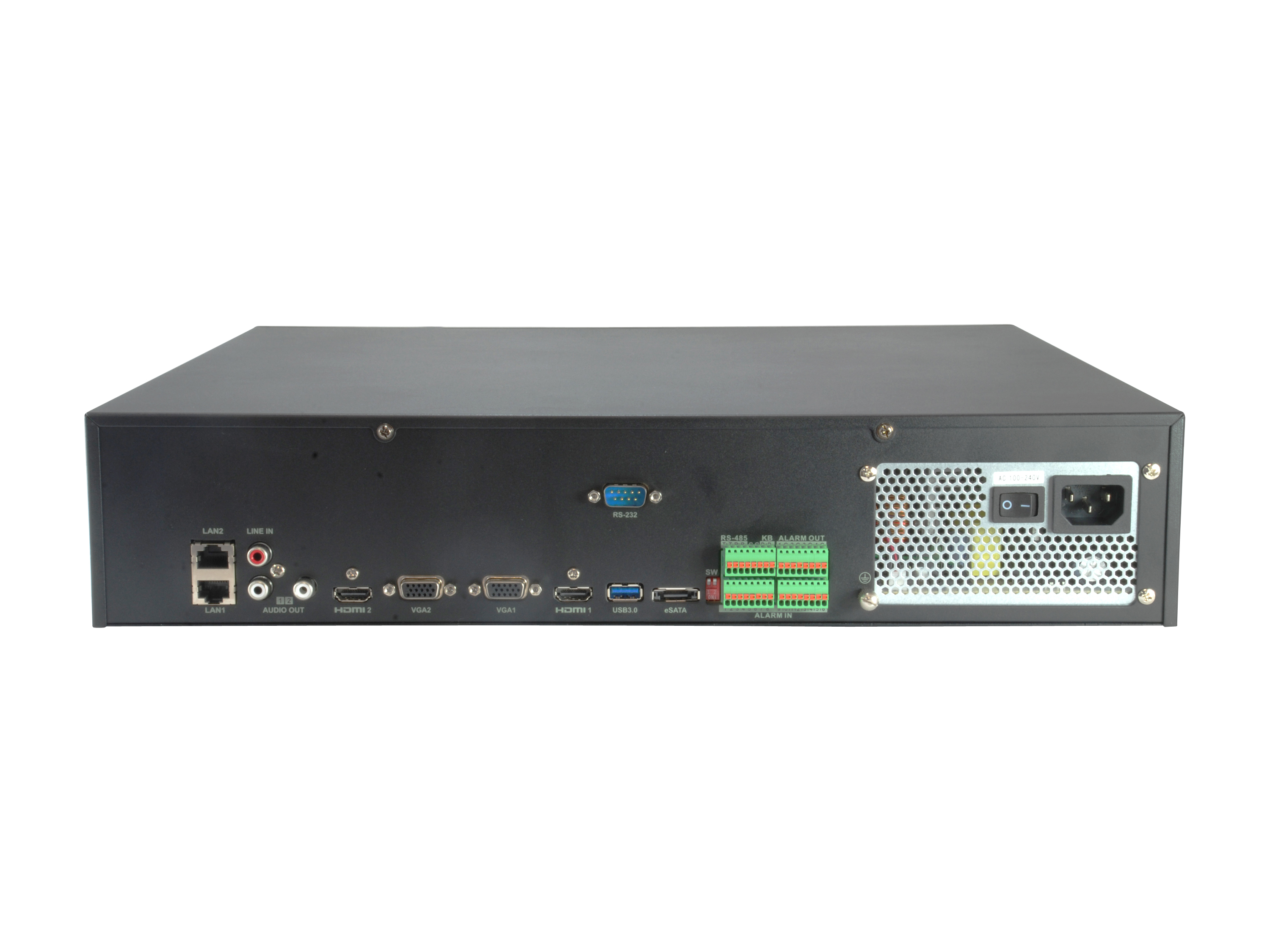

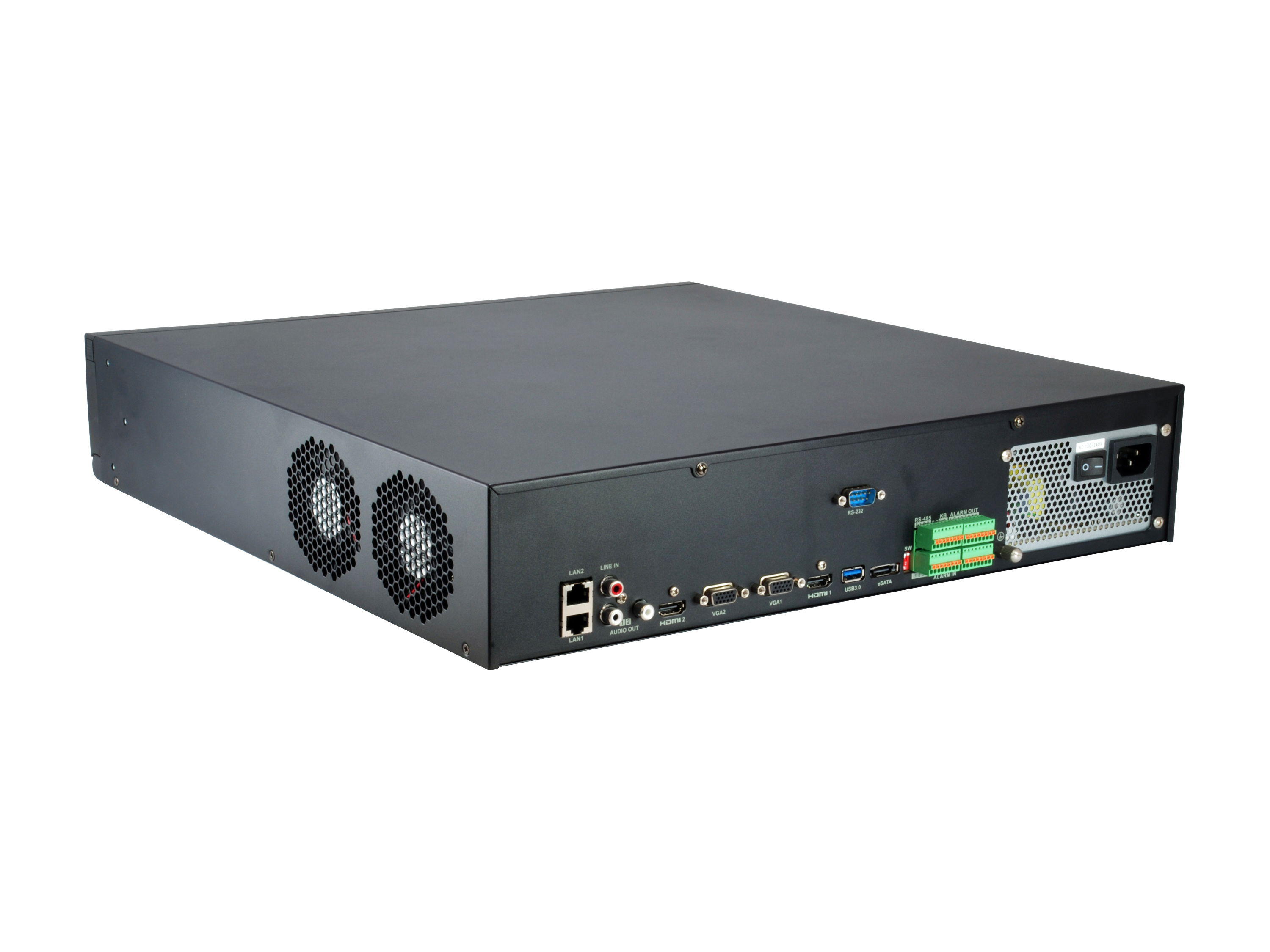

The NVR also features built-in HDMI, VGA and USB ports for peripheral devices such as a monitor, mouse or keyboard, allowing users to operate directly from the NVR without the cost of adding a PC to the deployment. 8 HDD bays complete the package, with a disk capacity of up to 10TB making the LevelOne NVR-0764 a powerful, smart and cost-effective solution for managing your security network.

Supports dual gigabit LAN ports allowing for concurrent dual-connection, and providing a network backup in case of unscheduled network downtime.

Central Management System (CMS) software is included for free, with no license fees. The CMS is capable of managing up to 256 NVRs, making it suitable for large scale surveillance applications.

Specifikationer

Video indgangskanaler 64 kanaler
Maksimal opløsning 3840 x 2160 pixel
Alarm indgangskanaler 4
Alarm udgangskanaler 16
Video optagelsestilstande 720p, 1080p
Antal brugere 128 bruger(e)
Skærmvisning (OSD) Ja
Understøttede videoformater H.264, H.264+, H.265, MPEG4
Operativsystem installeret Indbygget LINUX
PTZ-kontrol Ja
Indgang båndbredde 320 Mbit/s
Udgang båndbredde 256 Mbit/s
Wi-Fi Ingen
Maksimal lagerkapacitet 80 TB
Antal understøttede HHD'er 8
HDD-størrelse 3.5"
Understøtter RAID Ja
RAID-niveauer 0, 1, 5, 10
Ethernet LAN-porte (RJ-45) 2
Antal HDMI-porte 2
VGA (D-Sub) udgangsporte 2
Antal USB 2.0-porte 2
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte 1
Audio RCA udgange 2
RS-485-porte 1
RS-232 grænseflade Ja
eSATA Ja
Line-in Ja
Understøttede netværksprotokoller TCP,UDP,IPv4,IPv6,Http,Https,SMTP,NTP,SNTP,RTSP, SNMP, FTP
Stativ-montering Ja
LED-indikatorer Strøm
Tænd-/slukkontakt Ja
Produktfarve Sort
Certificering CE,FCC,UL
Strømforbrug (maks.) 200 W
Vekselstrømsindgangsspænding 100 - 240 V
Driftstemperatur (T-T) -10 - 55 °C
Relativ luftfugtighed ved drift (H-H) 10 - 90%
Bæredygtighedscertifikater RoHS
Bredde 470 mm
Dybde 90 mm
Højde 445 mm
Vægt 10 kg
Pakkebredde 510 mm
Pakkedybde 110 mm
Pakkehøjde 450 mm
Pakketype Kasse
Pakkevægt 12 kg
Kabler inkluderet Vekselstrøm
CD manual Ja
Hovedkassens bredde (udvendigt) 520 mm
Hovedkassens længde (udvendigt) 180 mm
Hovedkassen højde (udvendigt) 510 mm
Hovedkassens bruttovægt (udvendigt) 12,7 kg
Produkter pr. hovedkasse (udvendigt) 1 stk
