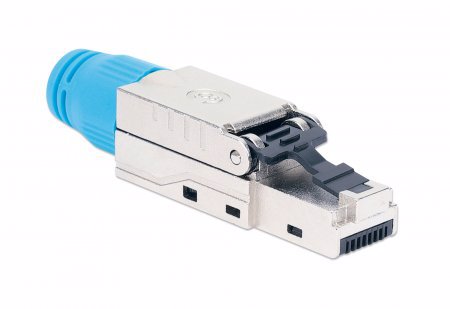

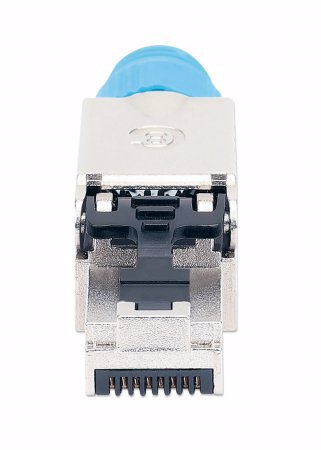

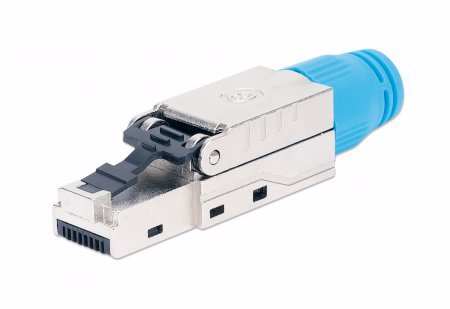

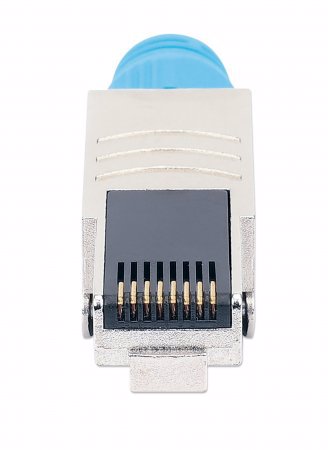

Intellinet 791199 kabelsamler RJ45 Blå

SKU: 1000209582
EAN: 0766623791199

Intellinet 791199, RJ45, Blå, Hanstik, Lige, Cat8.1, U/FTP (STP)
Mere info
119,00 DKK Ex. moms: 95,20 DKK På lager

Produktbeskrivelse

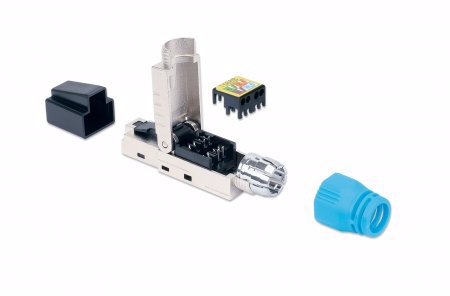

Field-installable Cat8.1 STP RJ45 Modular Plug for easy, fast and tool-free high-quality cable assembly in data centers
The Cat8.1 40G Shielded Toolless RJ45 Modular Field Termination Plug from Intellinet Network Solutions is designed for time-saving, high-quality cable terminations even when out in the field, especially for ToR (Top of Rack) and MoR (Middle of Row) installations in data centers. Without any special tools, the cable can be assembled within few minutes.

Future-proof high-end connection
This plug is suitable for both stranded and solid conductor cables for ultra-high performance network applications up to 25GBase-T and 40GBase-T with PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE. For maximum signal integrity, it is equipped with gold-plated contacts and 360° STP shielding.

Specifikationer

Antal pr. pakke 1 stk
Produktfarve Blå
Bredde 12 mm
Højde 14 mm
Vægt 30 g
Dybde 58 mm
Opbevaringstemperatur (T-T) -40 - 70 °C
Certificering CE RoHS
Driftstemperatur (T-T) -40 - 60 °C
Strøm 1,5 A
Stik RJ45
Stikforbindelse kontakter plettering Guld
Spænding 1000 V DC/700 V AC
Stik køn Hanstik
Standard for kabler Cat8.1
Kabelafskærmning U/FTP (STP)
Forbindelsesformfaktor Lige
Kontaktmodstand 20 mΩ
