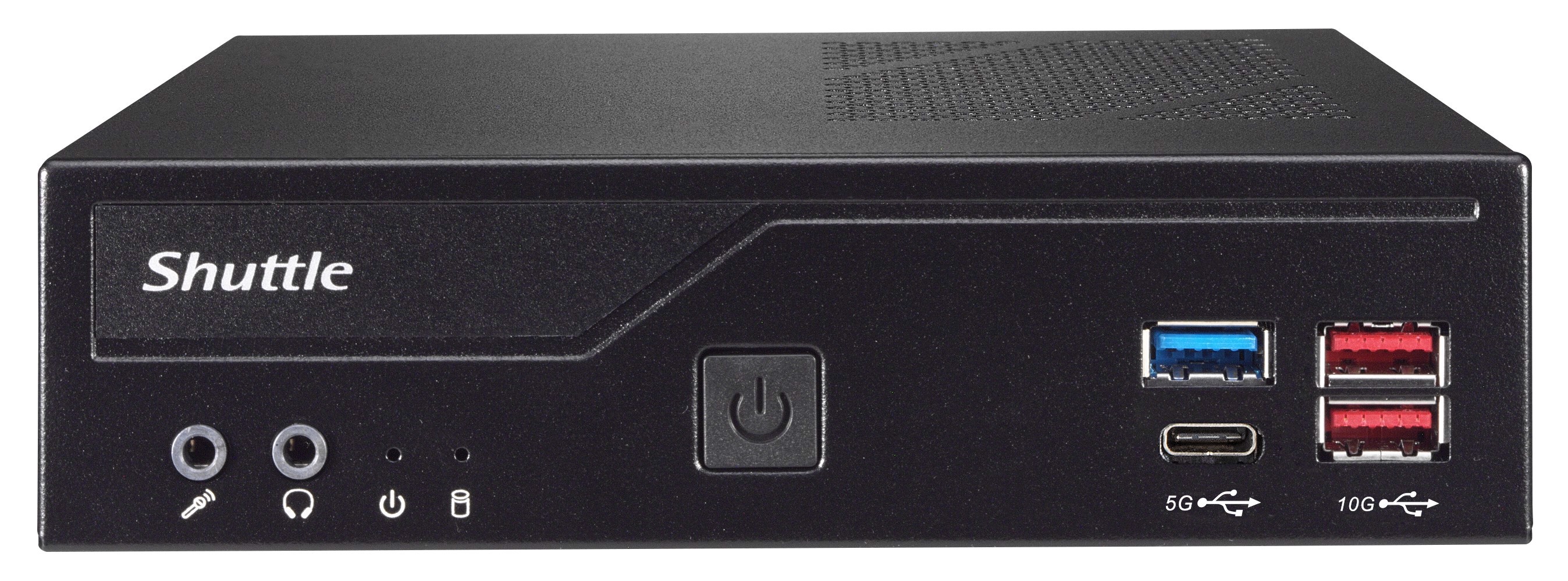

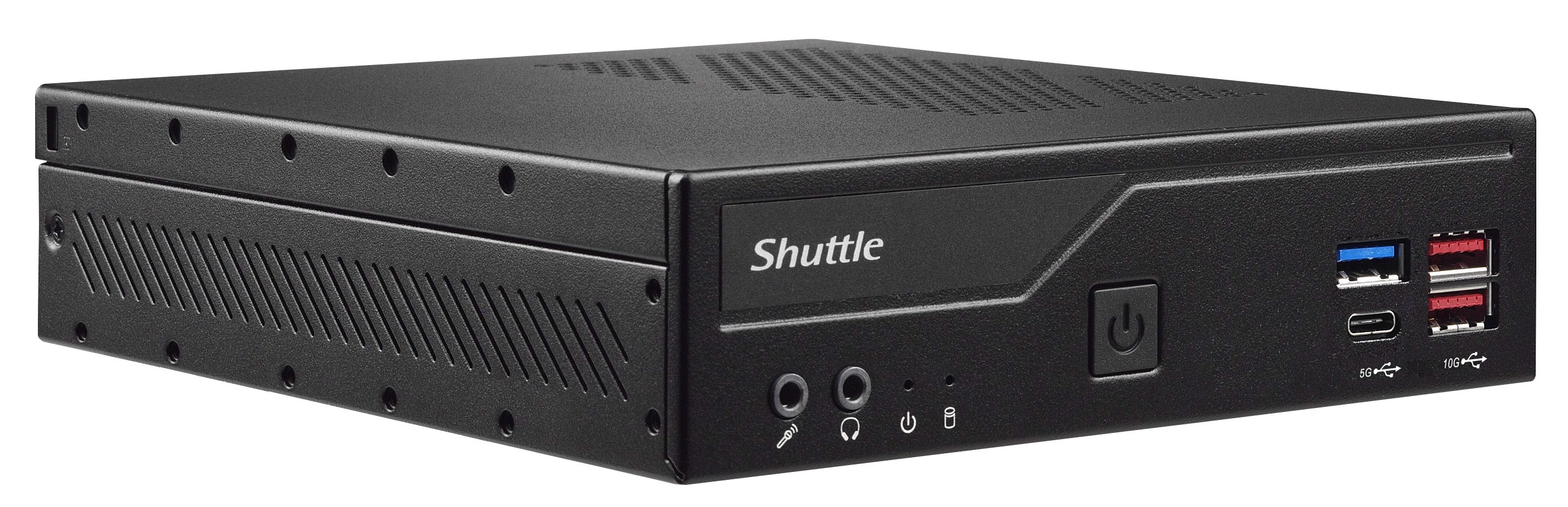

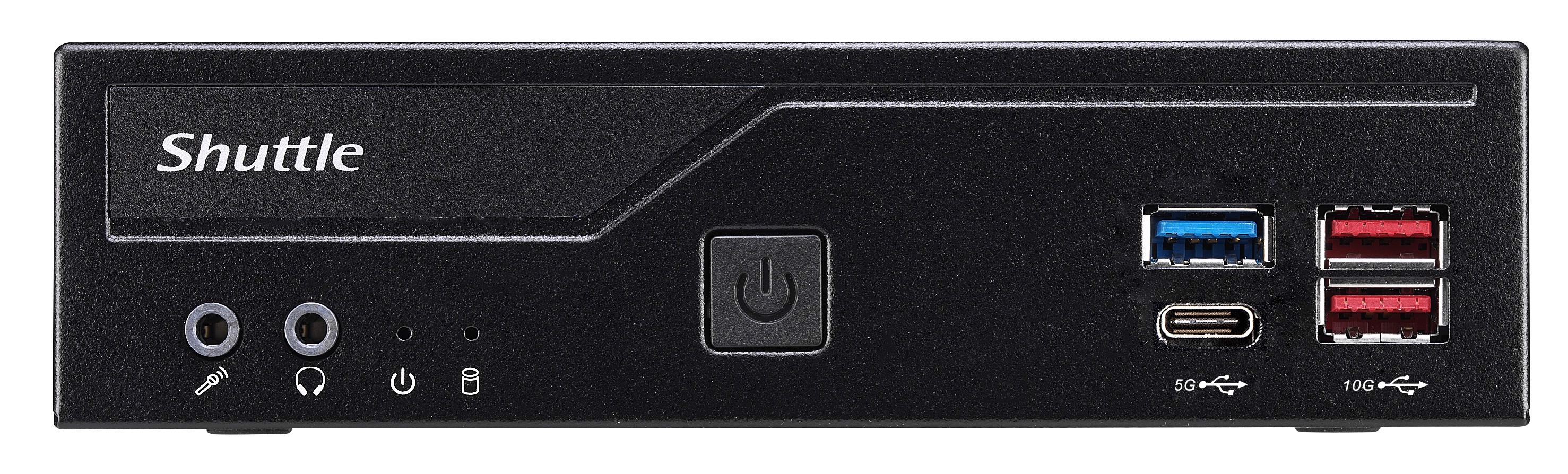

Shuttle DH670V2 PC barebone 1,35 L størrelse PC Sort Intel H670 LGA 1700

SKU: 1001507831
EAN: 0887993005942

Shuttle DH670V2, 1,35 L størrelse PC, Mini PC barebone, Intel H670, LGA 1700, DDR4-SDRAM, PCI Express, Serial ATA III
Mere info
2.749,00 DKK Ex. moms: 2.199,20 DKK På lager

Produktbeskrivelse

Robust 1.3-litre Slim PC supports Intel Core Gen. 12/13 processors and four UHD displays

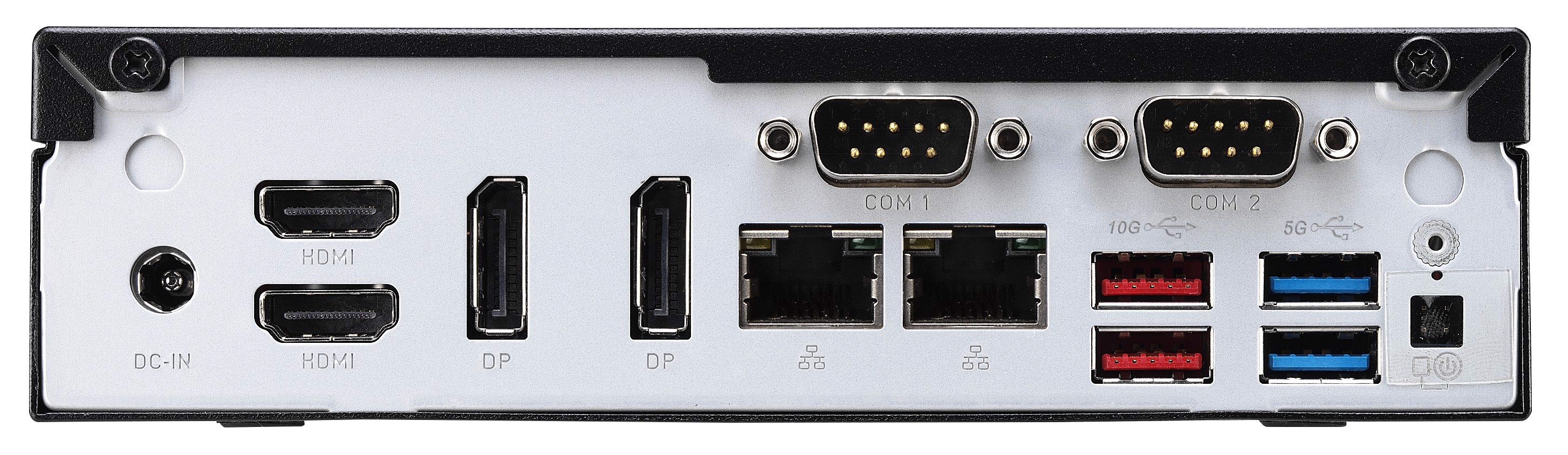

The Shuttle XPC slim Barebone DH670V2 with H670 chipset houses the performance of Intel's 12th/13th generation*) Core desktop processors (codenamed Alder Lake-S and Raptor Lake-S) for socket LGA1700 in a compact 1.3-litre format. The DH670V2 allows for four Ultra HD displays to be operated at the same time via 2x HDMI and 2x DisplayPort. It also offers Dual Intel 2.5G LAN, four USB 3.2 Gen 2 and COM ports. The slim metal chassis comes with a VESA mount included, provides versatile connectivity and reliable operation in environments with ambient temperatures of up to 50 °C. This platform is targeted at professional applications such as Digital Signage, POS, POI, gambling machines, office, healthcare and industry.

Specifikationer

Harmoniseret systemkode (HS) 84733080
Produktfarve Sort
Pakkevægt 2,1 kg
Bredde 190 mm
Højde 43 mm
Vægt 1,3 kg
Dybde 165 mm
Relativ luftfugtighed ved drift (H-H) 10 - 90%
Understøttede Windows-operativsystemer Windows 10, Windows 11
Understøttede Linux-operativsystemer Ja
Driftstemperatur (T-T) 0 - 50 °C
Vekselstrømsindgangsspænding 100 - 240 V
Vekselstrømsindgangsfrekvens 50/60 Hz
Ethernet LAN-porte (RJ-45) 2
Ethernet LAN Ja
Hurtig start guide Ja
Produkttype Mini PC barebone
LED-indikatorer HDD, Strøm
Udgange til hovedtelefoner 1
Sikkerhed ETL, CB, BSMI
Bæredygtighedscertifikater BSMI, CB, CE, ENERGY STAR, ETL, ErP, Federal Communications Commission (FCC), RoHS
Indbyggede højttaler(e) Ingen
Processor sokkel LGA 1700
Processorproducent Intel
Wi-Fi Ingen
VESA montering Ja
Slot til kabellås Ja
Panel montering grænseflade 100 x 75 mm
Kabellåseslids type Kensington
Hukommelseskanaler To-kanals
On-board grafikkort Ja
Understøttede hukommelsestyper DDR4-SDRAM
Maksimal intern hukommelse 64 GB
Husmateriale Metal
Strømforsyningstype Ekstern AC-adapter
Indbygget processer Ingen
AC-adapter inkluderet Ja
DisplayPort-version 1.4
DC-in-stik Ja
Antal HDMI-porte 2
Antal DisplayPorts 2
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte 3
Udgangsspænding for vekselstrømsadapter 19 V
Vekselstrømsadapterens udgangsstrøm 6,32 A
Understøttede lagerdisk størrelser 2.5,M.2
Antal understøttede lagerdiske 2
Kølingstype Aktiv
Drivere inkluderet Ja
Mikrofonindgang Ja
Overholdelse af bæredygtighed Ja
NVMe Ja
Antal serielle porte 2
HDMI-version 2.0b
Antal strømforsyninger 1
Strømledning inkluderet Ja
Grænseflade til lagerdisk PCI Express, Serial ATA III
Grafikadapter familie Intel
Strømforsyning 120 W
Hukommelsesspænding 1.2 V
Kabinettype 1,35 L størrelse PC
Operativsystem installeret Ingen
Understøttet datalagringsdrev typer HDD & SSD
Bundkort chipsæt Intel H670
Trusted Platform Module (TPM) Ja
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-C-porte 1
Trusted Platform Module (TPM) version 2.0
Antal hukommelsesstik 2
Hukommelses slots type SO-DIMM
Ikke-fejlkorrigerende kode Ja
Understøttede hukommelsesclock-hastigheder 2133,2400,2666,2933,3200 MHz
BIOS-type AMI
Antal understøttede processorer 1
Antal USB 3.2 Gen 2 (3.1 Gen 2) type-A-porte 4
